Northlake House Plan

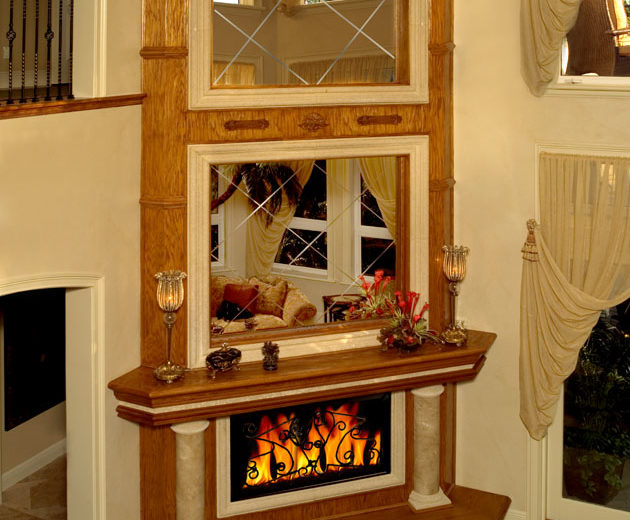

Awarded a Sand Dollar Award for Product Design of the Year, this exquisite, 2-story house plan includes 4 bedrooms, 4 baths, an oversized study, outdoor kitchen with bar, cast stone fireplace in the living room, an elevator, and butler’s pantry, just for starters. Upstairs you will find a decadent master suite with lounge area, wet bar, sun deck, walk-in-closets, and a master bath fit for a king. From the intricate ceiling designs and volume ceilings to the elevator and 3-car garage with cast stone colonnades, no details were overlooked in creating this spectacular Mediterranean home plan with timeless appeal.

See all house plans with photos.

Floor Plan Click here to view a larger image or print floor plan
  • Walk-in Pantry
  • Peninsula/Eating Bar

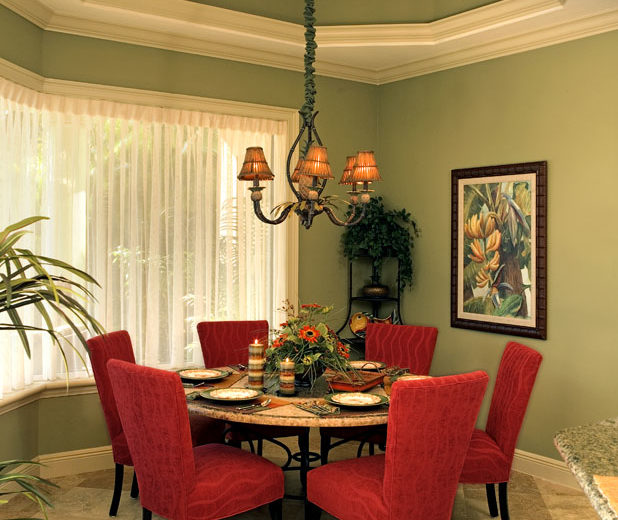

  • Nook/Breakfast Area
  • Island
  • Butler's Pantry
  • Volume/vaulted ceilings
  • Upstairs Laundry
  • Study/Library
  • Loft/Balcony
  • Family Room
  • Extra Storage
  • Elevator
  • Over-Sized Garage
  • Screened Lanai

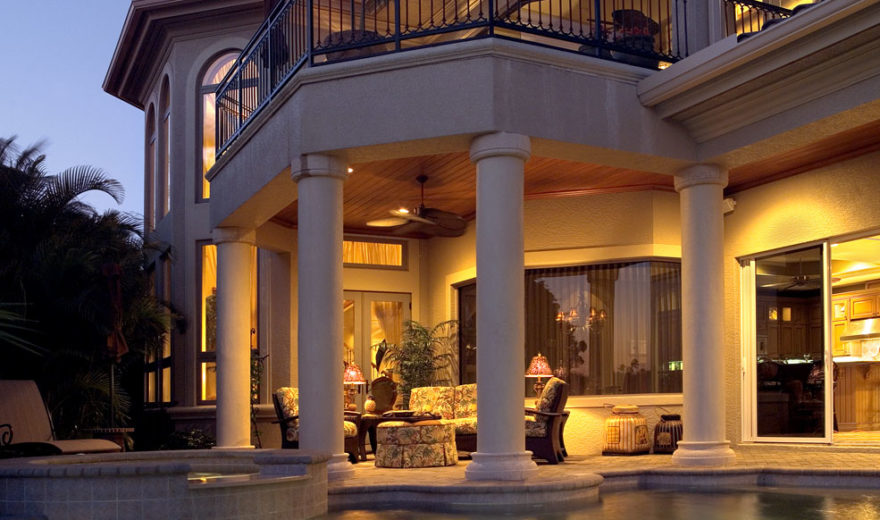

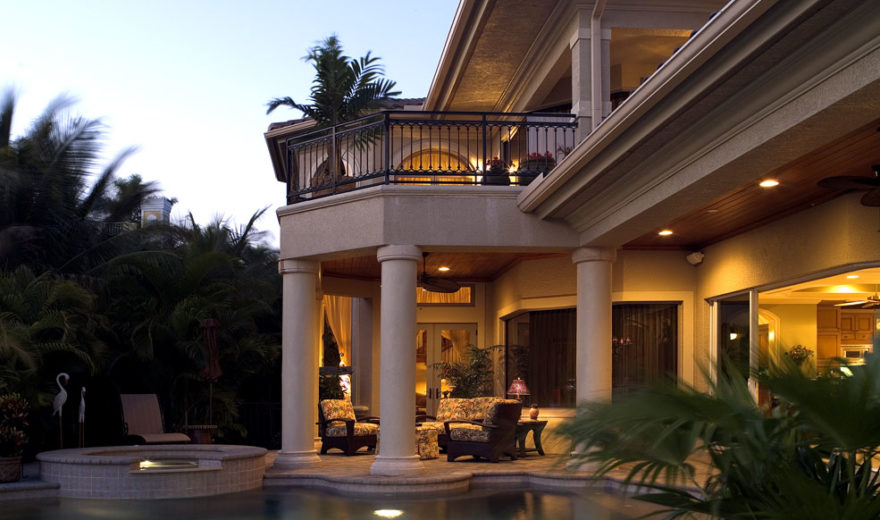

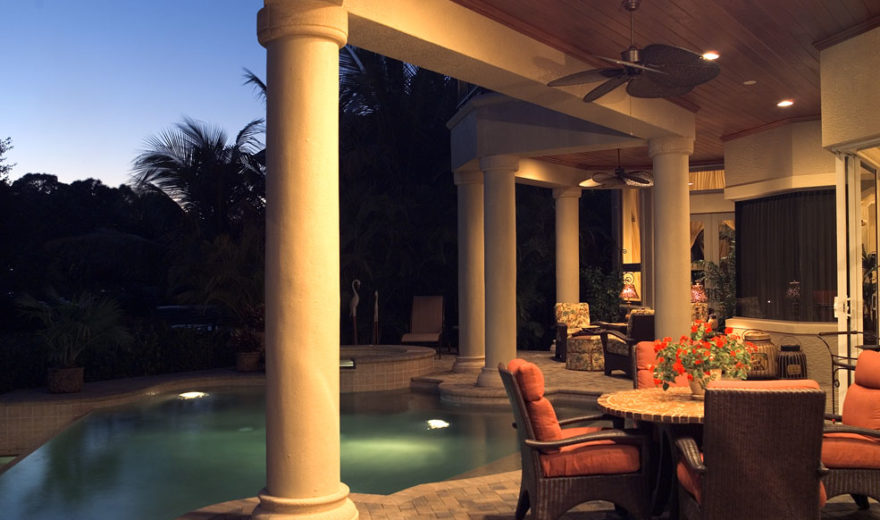

  • Rear covered lanai
  • Walk-in Closet
  • Master Sitting Area
  • Master Bedroom
  • Coffered
  • 9' - 11'
  • Master Bath
  • Coffered
  • 10' - 11'
  • Living Room
  • Vaulted
  • 23' 8"
  • Family Room
  • Coffered
  • 11'

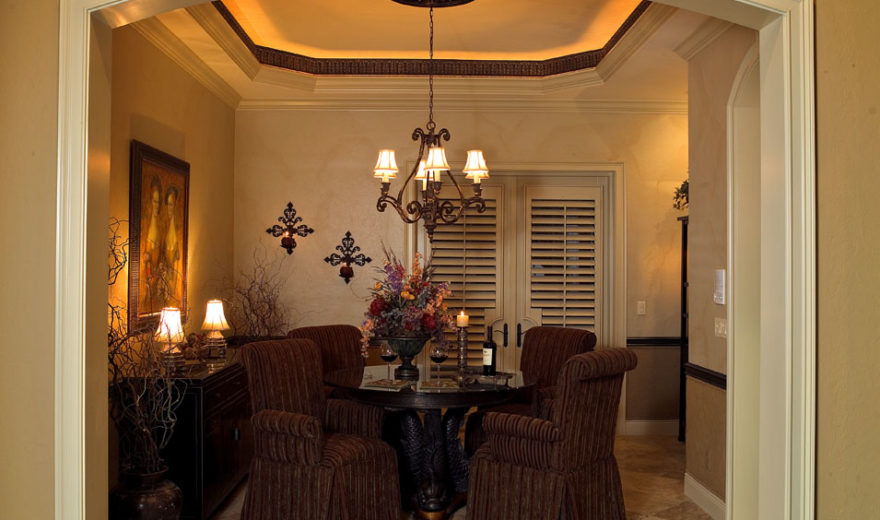

  • Dining Room
  • Coffered
  • 11'

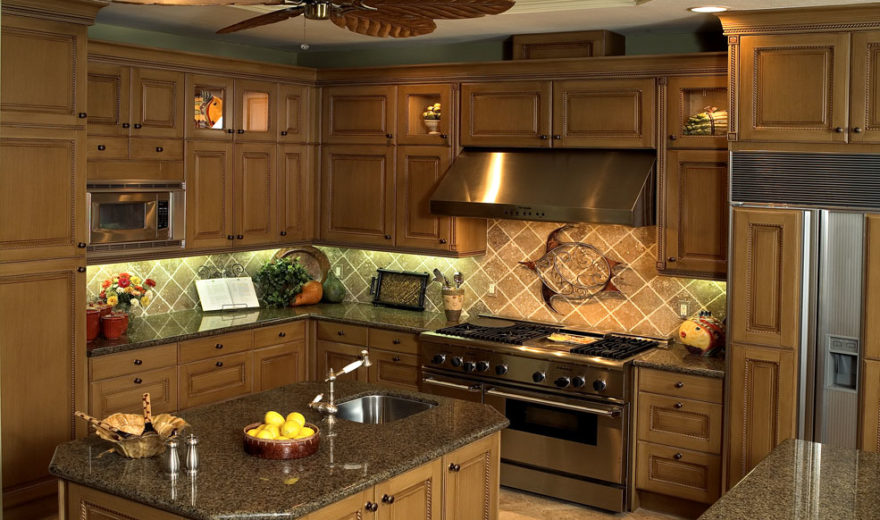

  • Kitchen
  • Coffered
  • 11'
  • Dinette
  • Coffered
  • 11'

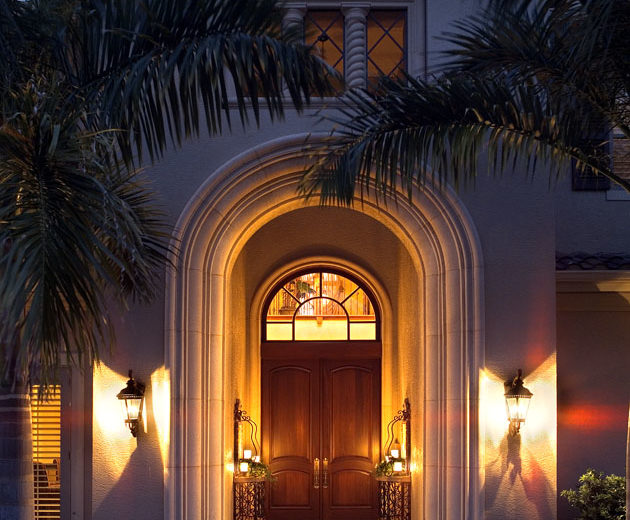

  • Entry
  • Vaulted
  • 24' 8"
  • Foyer
  • Vaulted
  • 23' - 24' 8"
  • Study
  • Coffered
  • 10' - 11'

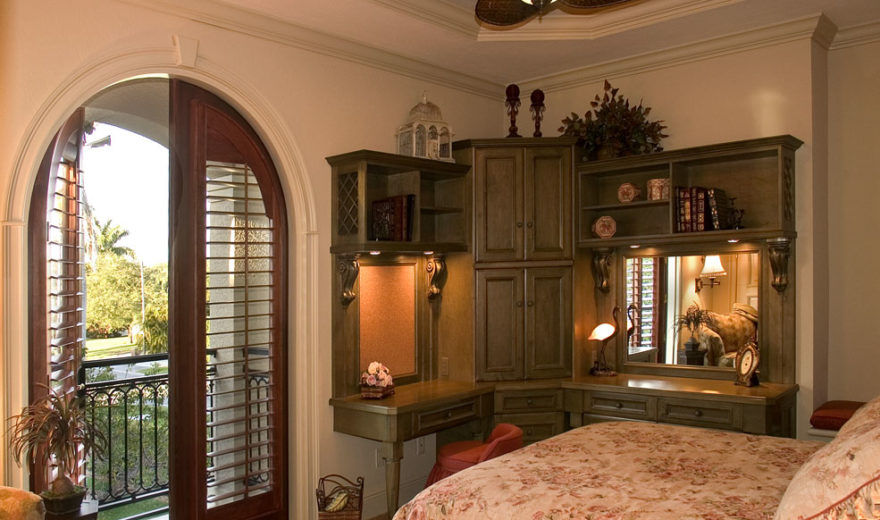

  • Bedroom 2
  • Flat
  • 10'
  • Bedroom 3
  • Flat
  • 10'

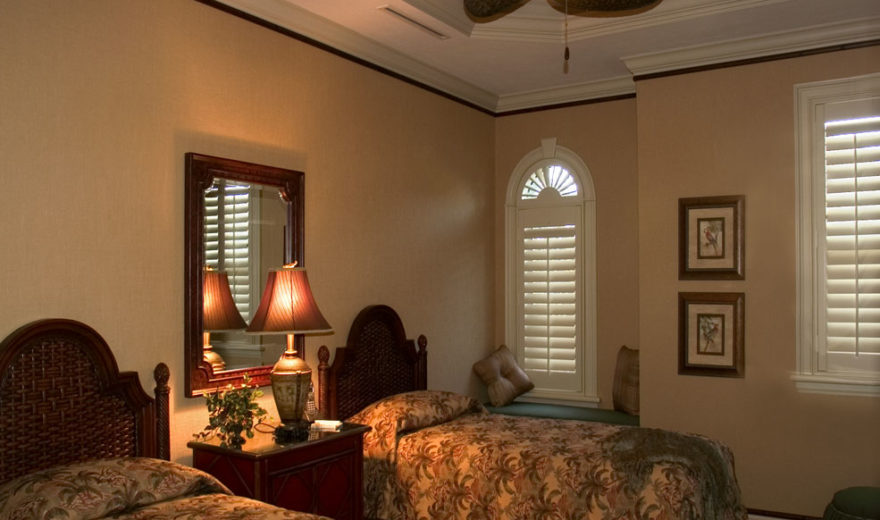

  • Bedroom 4
  • Flat
  • 10'

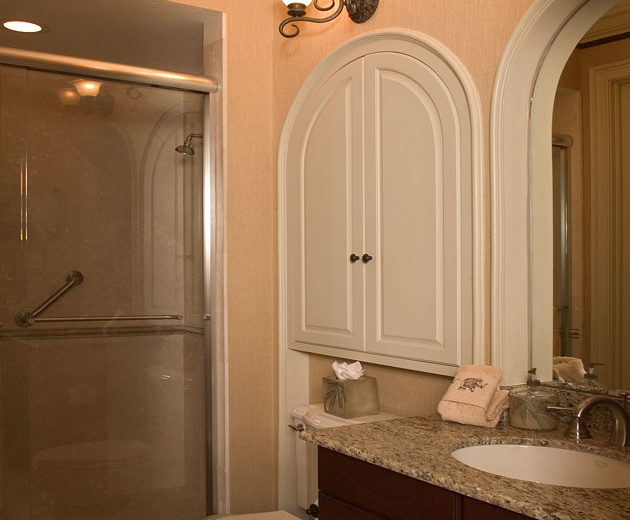

  • Baths
  • Flat
  • 10'

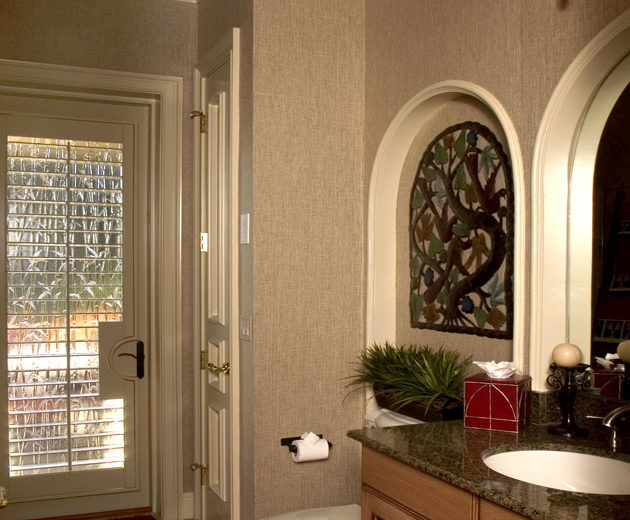

  • Pool Bath
  • Flat
  • 11'

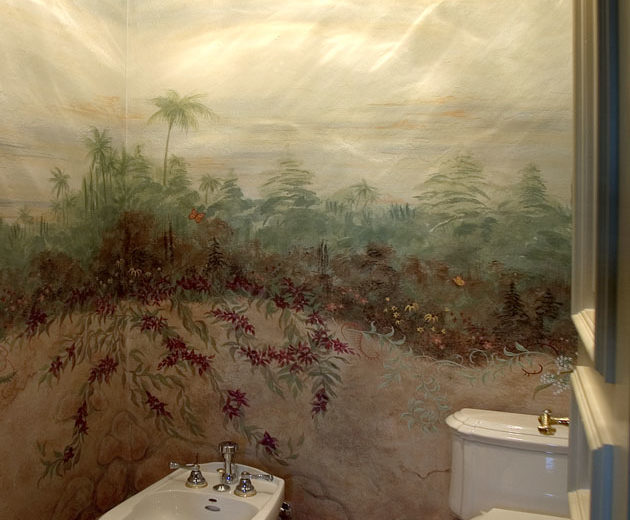

  • 1/2 Bath
  • Flat
  • 10'
  • Lanai Level One
  • Flat
  • 11'
