Carlisle Bay House Plan		Pin It Specs Stock Number: G2-3643-G Bedrooms: 2-4 Full Bathrooms: 4 Garage: 2 Floors: 2 Depth: 92' 6" Width: 82' 6" Height: 25' 6" Foundation Type: Stemwall Exterior Finish: Hardie Board Siding Exterior Wall 1st Floor: CMU Exterior Wall 2nd Floor: 2" x 6" frame Roofing Material: Metal Roof Pitch: 6:12 Roof Framing: Mfg. Trusses Overall Ceiling Height: › View Room Ceiling Heights

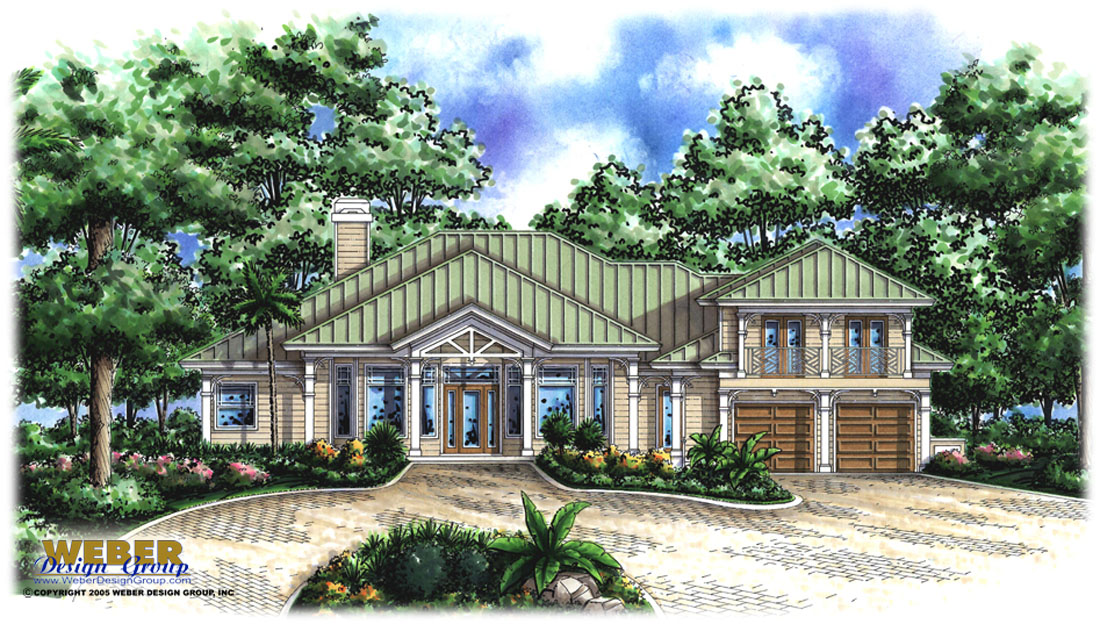

Print Elevation | View Larger Image

Click here to view larger image or print floor plan

Square Footage Total Living Area: 3,643 sq. ft. Main Floor: 3,020 sq. ft. Second Floor: 623 sq. ft. Entry: 496 sq. ft. Balcony: 98 sq. ft. Lanai: 329 sq. ft. Garage: 782 sq. ft. Total Under Roof: 5,348 sq. ft.

Features Main Floor Bed & Bath Main Floor Master Master Sitting Area Split Bedrooms Walk-in Closet Covered Entry Rear covered lanai Screened Lanai Suited for sloping lot Suited for view site Over-Sized Garage Handicapped Adaptable Storage Bonus Room Friend's Entry Great Room Loft/Balcony Open floor plan Study/Library Volume/vaulted ceilings Island Nook/Breakfast Area Peninsula/Eating Bar Walk-in Pantry

Pricing Additional set:  $45.00 CAD or Electronic files:  $1,450.00 Conversion to 2x6:  $350.00 Marketing Kit:  $250.00 PDF Plan:  $1,450.00 Reproducible sets:  $1,450.00 Reversal Fee:  $350.00

This Southern Comtemporary Florida design epitomizes family living. With an open floor plan and master wing this is a great place to call home. The upstairs bonus room with balcony and full bath is a wonderful space for a media or play room. The covered lanai off the second bedroom gives that a special touch not often seen. If you are looking for a house plan with an Old Florida flair, this could be it!



Please call for pricing and availability of this plan in Collier and Lee Counties, Florida. Also pricing will vary for these plans if permission is granted. Please contact our office for more information.

COPYRIGHT © 2006 WEBER DESIGN GROUP, INC.
Weber Design Group, Inc. hereby reserves its common law copyright and all other property rights in these plans, ideas, and designs. These plans and designs are not to be reproduced, copied, or changed in any form or manner. These plans and designs are not to be assigned to any third party without first obtaining the express written permission of Weber Design Group, Inc.

Weber Design Group, Inc. makes no claims or determinations as to the availability and or usability of this plan on any specific property or building lot. Building lot and property information must be verified with regards to the use of any plan. Verification of legal building limitations (i.e. property setbacks, height restrictions, building footprint limitations, etc.) is the sole responsibility of the owner, and not the responsibility of Weber Design Group, Inc. All plans are copyrighted by Weber Design Group, Inc. and the use of said plans on any property will require a license agreement provided by Weber Design Group, Inc. to avoid any copyright infringement litigation of Weber owned designs. Weber Design Group, Inc. reserves the right to limit or refuse a license agreement to build any Weber plan, on any property, at Weber's sole discretion.

The information contained on this page is for the convenience of reference. It should not be relied upon as express or implied representation of the final detail of the construction drawings. The dimensions, square footages, and other details are approximate and may vary with the actual construction drawings.
