Carlyle House Plan

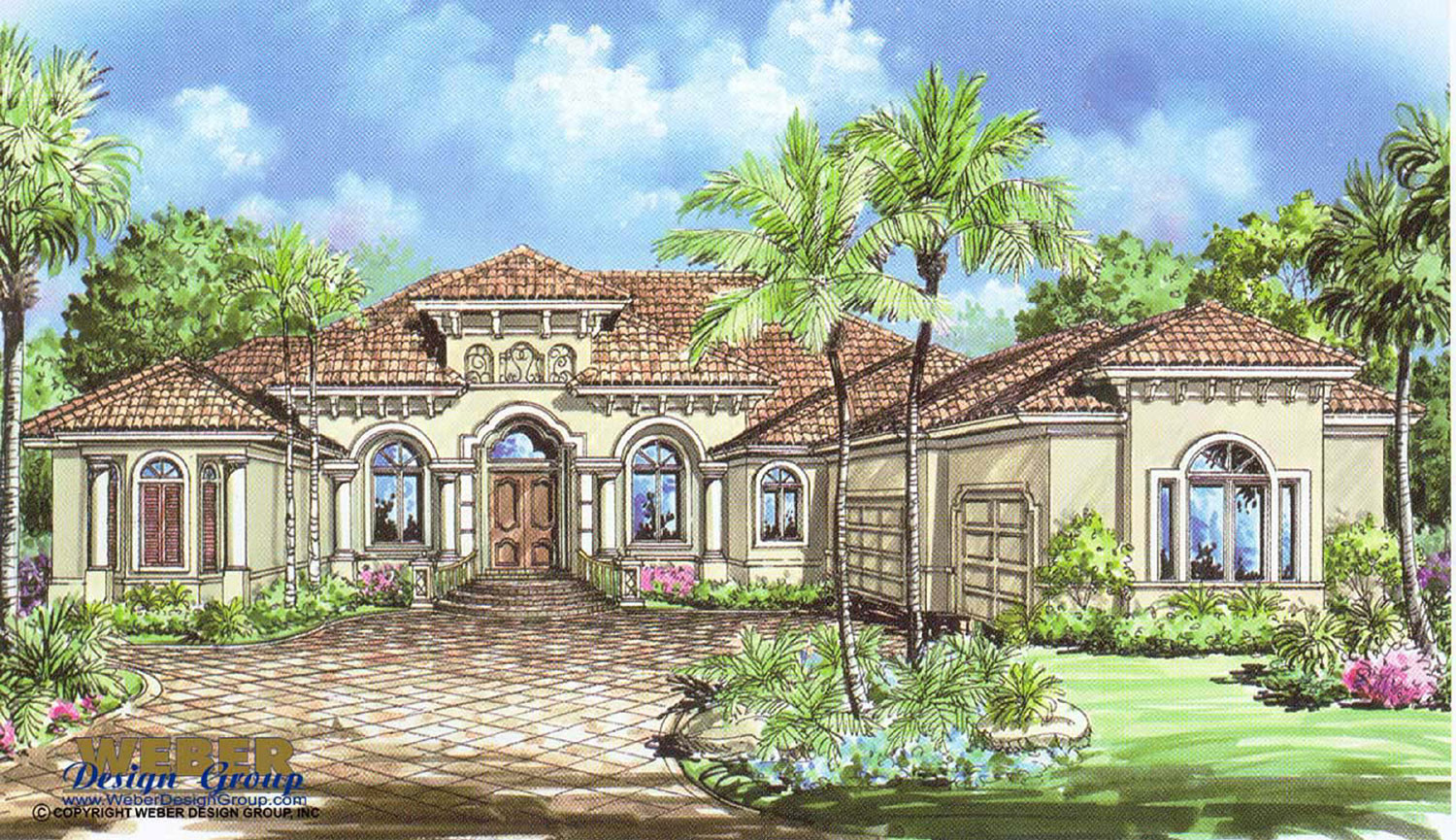

The Carlyle home plan has striking curb appeal with its well-balanced and detailed Mediterranean facade. The floor plan offers open, formal and casual living areas. Plenty of natural light and views to spacious outdoor areas and swimming pool enter through pocketing sliding-glass doors, french doors, windows, and mitered glass.
This house plan offers three full bedrooms with four full baths. The functional and spacious kitchen is open to the family room with a built-in entertainment center and dinette. The one story house plan has two en-suite bedrooms in addition to the luxurious master suite, plus an additional full pool bath, a study, and a three-car side load garage.
Search all house plans.
Click here to view a larger image or print floor plan- Extra Storage
- Side-Entry Garage
- Over-Sized Garage
- Suited for View Site
- Screened Lanai
- Rear Covered Lanai
- Outdoor Kitchen
- Walk-in Closet
- Split Bedrooms
- Master Sitting Area
- Main Floor Master
- Main Floor Bed
- Den/Home Office
- Family Room
- Open Floor Plan
- Volume/Vaulted ceilings
- Butler's Pantry
- Island
- Nook/Breakfast Area
- Peninsula/Eating Bar
- Walk-in Pantry
- Room
- Ceiling Type
- Ceiling Height
- Master Bedroom
- Coffered
- 10' - 11'
- Master Bath
- Flat
- 10'
- Living Room
- Coffered
- 12' - 14'
- Family Room
- Coffered
- 12' - 13'
- Dining Room
- Coffered
- 12' 4" - 13' 8"
- Kitchen
- Flat
- 12'
- Dinette
- Vaulted
- Entry
- Flat
- 18'
- Foyer
- Coffered
- 13'
- Study
- Coffered
- 13' - 14'
- Bedroom 2
- Coffered
- 10' - 11'
- Bedroom 3
- Flat
- 10'
- Baths
- Flat
- 10'
- Pool Bath
- Flat
- 10'
- Lanai Level One
- Flat
- 12'
